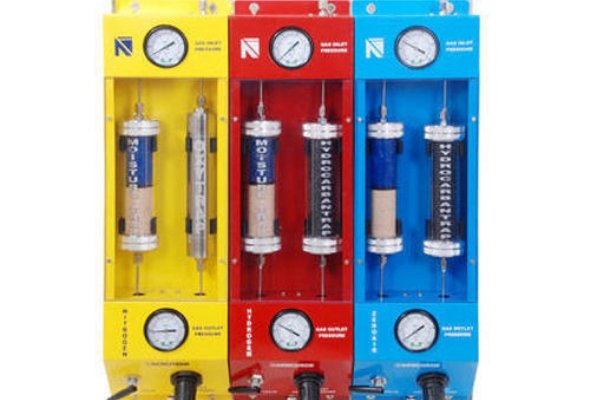

Purification panels
Salient Features
- Compact design, wall-mounted, powder-coated
- Deliver Ultra-high detachable.
- Suitable for 10 kg/cm2 inlet pressure & 7 kg/cm2 Outlet pressure
- Deliver Ultra high pure(UHP) grade gases.
- 1/4" or 1/8" fittings & tubings for each line.
- The custom-made Gas filter is used in Gas Chromatograph for FID. TCD, ECD, ICP, MS, AAS.
Benefits:
- Improves reproducibility of analysis.
- Reduce baseline noise, drift problems, etc.
- Increase column life preferably for polar & capillary columns
- Deliver better than UHP grade gasses.
- Increase detector life &n reduce the flame problem.
- Save costly gases through toggle valves & gas distribution panels.

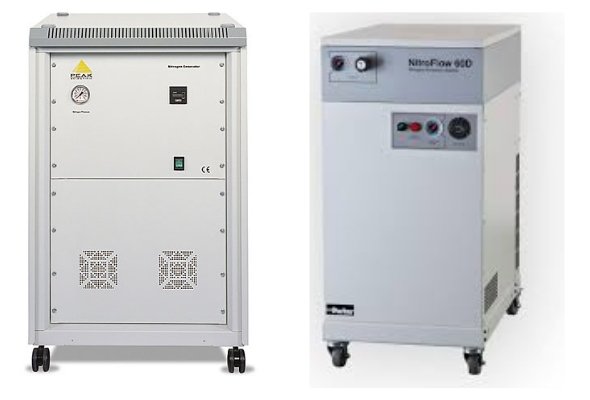

Nitrogen generators for lcms
APPLICATION
Analytical Laboratory
FOR FLUID TYPE
Nitrogen, Dry Air
GAS PURITY
Up to 99.5%
COMPRESSOR INCLUDED
Available
INLET PORT SIZE
1/4 or 1/2 (NPT) inch
OUTLET PORT SIZE
1/4" NPT or 1/2" NPT
ELECTRICAL REQUIREMENTS
Up to 90 to 250 VAc, 50 to 60 HZ

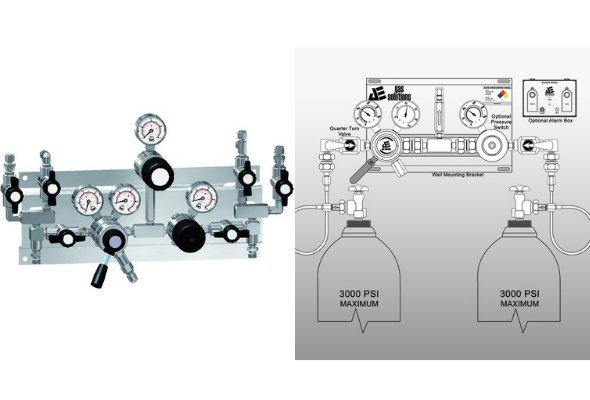

AUTO CHANGEOVER WITH ALARM SYSTEM
auto changeover with alarm system

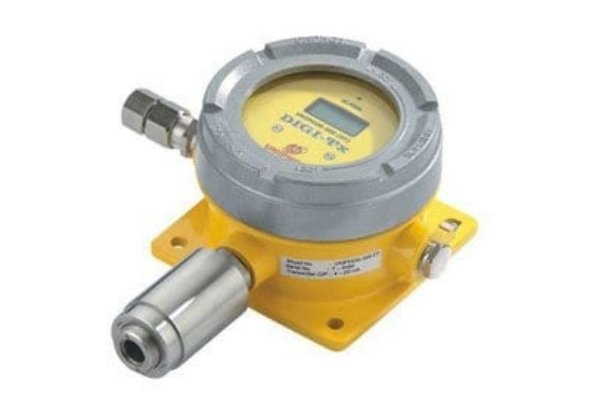

GAS DETECTION SENSORS AND TRANSMITTER WITH DOCKING STATION
PORTABLE GAS LEVEL DETECTOR

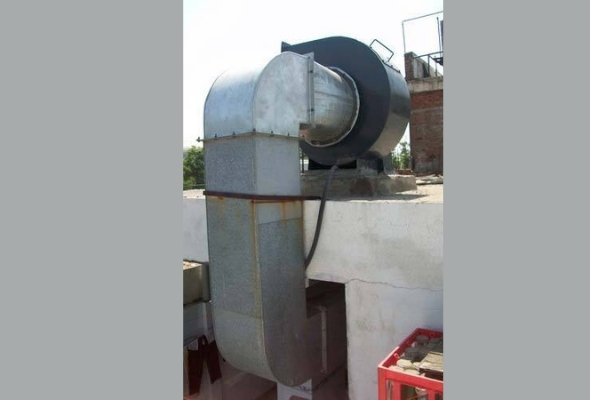

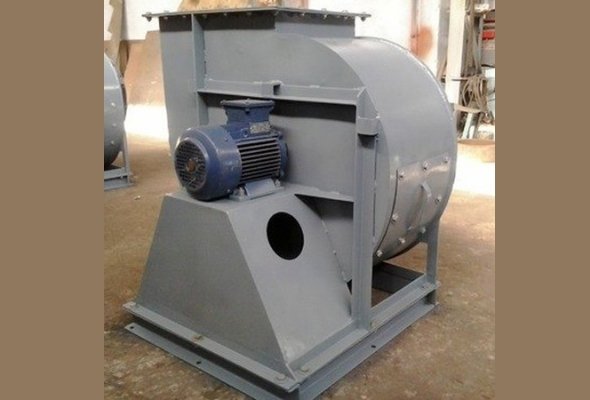

exhaust system with ducting
exhaust system with ducting

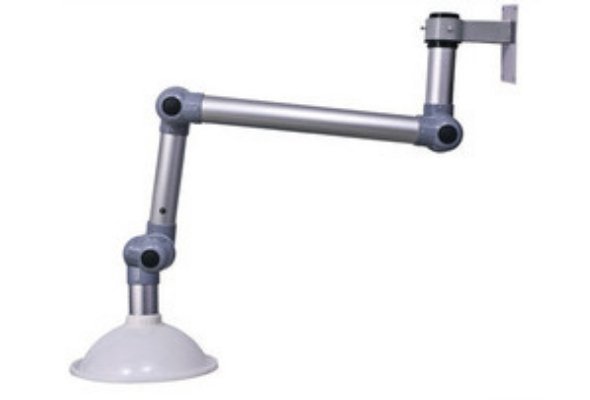

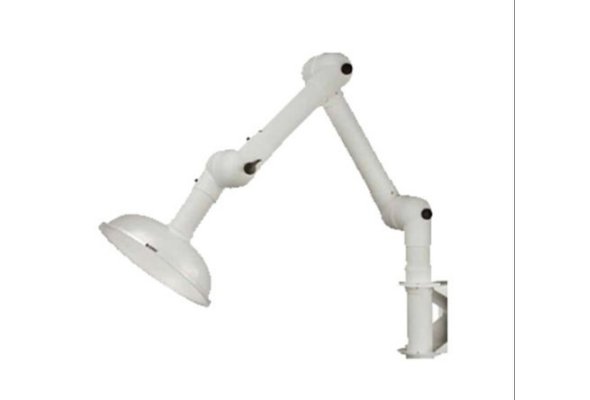

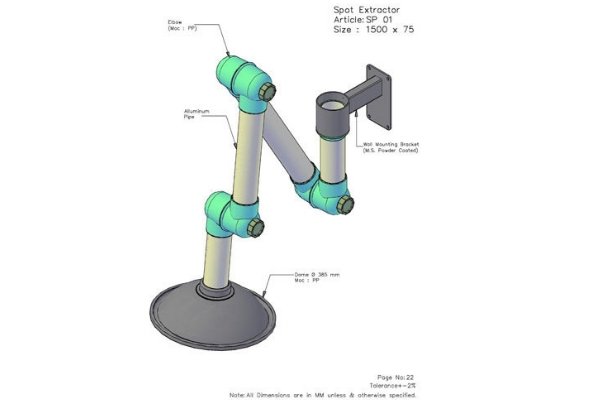

Spot extractor system
SPOT EXTRACTOR SYSTEM
Spot extractor system

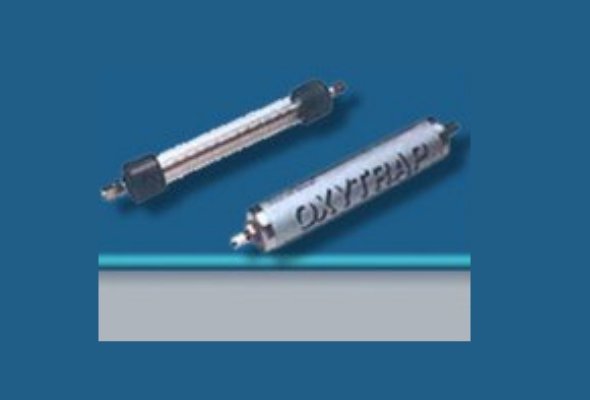

OXYTRAP
Removal of Oxygen from gases takes place only with the help of catalyst types of materials, which also work only under specific operating conditions. We use a pre-treated catalyst that can be generated & has comparatively better activity under normal working conditions. Oxytraps are supplies with either indicating or non- indicating the type of catalyst.

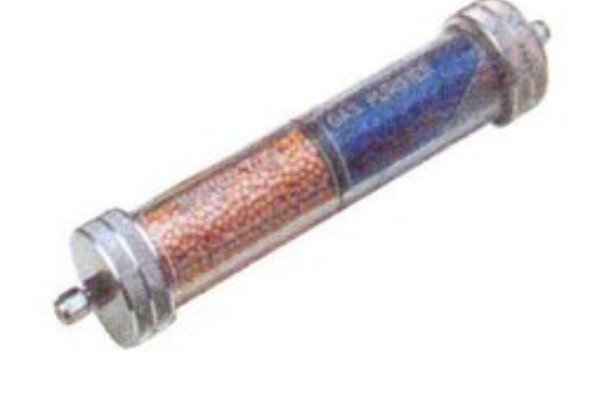

MOISTURE TRAP
High-efficiency Silica gel & Molecular sieves are used for the purpose of removing moisture from the carrier gas. Silica gel is of indicating type changing its colour from blue to pink on uses which have moisture capacity. The shape of the molecular sieves is spherical, which yields high mechanical strength & low dusting. Both the materials are of regenerable type.
Silica gel Material: When the colour of silica gel material changes from blue to white then it needs to be regenerated by keeping the silica gel material in the oven at 110°C. The normal frame for regenaration is approx 2-3 Hrs.

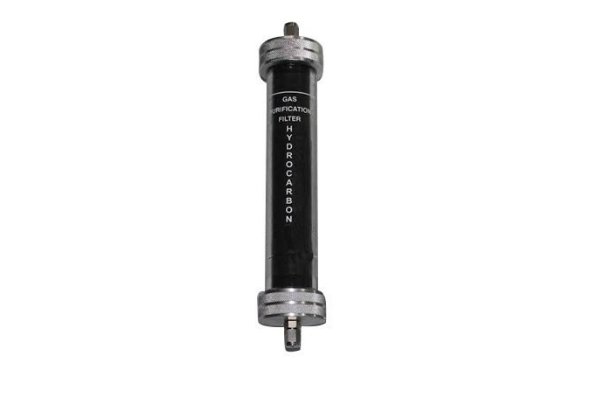

Hydrocarbon trap
Activated charcoals is used for the purpose of removing hydrocarbon impurities from the carrier as well as fuel gases, especially for reducing the errors in analysis while using FID. These materials have a very large surface area & pore diameter to absorb large size hydrocarbon molecules.
Activated Charcoal / Carbon material should be replaced after 1 ½ to 2 years. Keep the activated charcoal / Carbon at 110ºC for 2-3 Hrs for regeneration or its better to replace the Activated charcoal.
Tubings
Tubings are available in Stainless Steel, Copper, Nylon & Teflon in different sizes. It is specially made for chromatograph use. Tubing is good in strength, flexible & in capillary form.
tubings are available in different sizes such as: 1/6", 1/8", ¼, 3/8", ½" &1" &. Other sizes on request.
SS316 SEAMLESS TUBINGS.

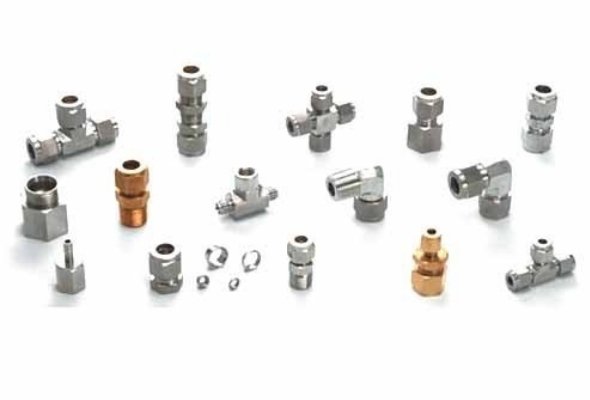

FITTINGS
Construction:-
Constructed out of bar stock material in stainless Steel as per
ASTM A276 TP 304 And TP 316 construction in other alloys, carbon steel and brass optional. The Fittings are designed for tube sizes: 1/16" to 1" & 4 MM to 25 MM, outside diameter, stud sizes are 1/8" to 1" NPT, API, ISO, Parallel, and ISO Taper.

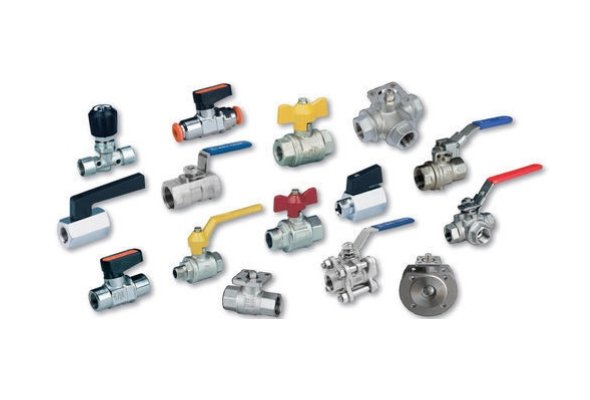

Valves
Construction:-
SS-316, SS-304, Carbon Steel, Brass, and Monel Material in different types of end connections in include Male/Female thread NPT, BSP, BSPT, and Single or Double Tube Fittings ends.
- One way on off, 3 or 4 way switching models.
- Blow-out Proof Bottom Loaded stem.
- Low opearating torque with SS lever/Fenolic handle.
- Full or reduced Bore for Perfect Flow.
- Floating Ball design for positive seating.
- Working Pressure from 1000 PSI to 6000 PSI.
- With PTFE seat.

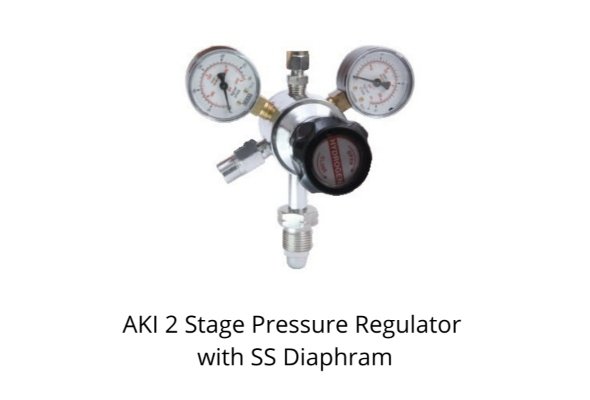

Regulators
| Body | AISI 316 Stainless Steel |
| Bonnet | AISI 316 Stainless Steel |
| Diaphram | AISI 316 Stainless Steel |
| Diaphram seal | Teflon |
| Valve Body | AISI 316 Stainless Steel |
| Valve Seat | Tefzel |

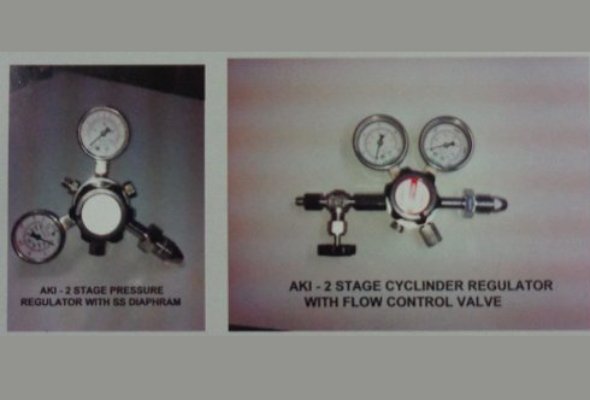

Regulators
| Flow Rate | i. 0.1 to 10 LPM - for instrument application |
| ii. 10 to 100 LPM - for other | |
| Service | Gas / Gas Mixture |
| Inlet Connection | 5/8" BSP M RH / LH |
| Outlet Connection | 1/4" OD Tube |
| Inlet Pressure Gauge | 2" Stainless Steel, 1/4" NPT M,0-280 Kg / cm² |
| Outlet Pressure Gauge | 2" stainless Steel, 1/4" NPT M,0-16Kg/cm² |
Features:
- Deliver Ultra High Pure (UHP) Grade Gases
- Compact Design, Wall Mounted, Powder Coated Filters are easily detachable
- Suitable for 280 Kg/cm² inlet pressure & 16 Kg/ cm² outlet pressure
Construction:
- Two types of Cylinder Regulators available Brass Chrome Plated body with SS diaphragm and SS body with SS diaphragm.
- Inlet pressure range: 0-240 kg/cm²
- Outlet pressure range: 0-16 kg/cm² diaphragm type

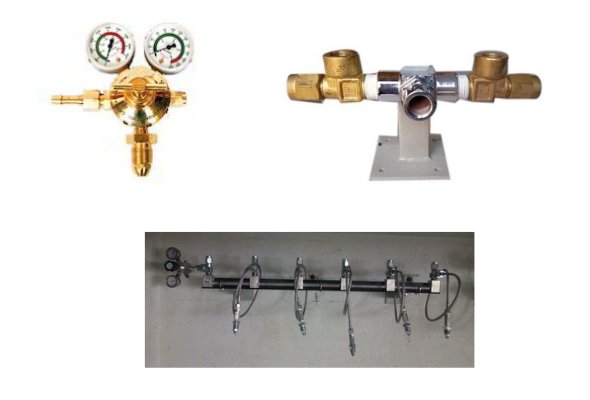

manifold systems
High-Pressure Manual Gas Manifold is best suitable for highly inflammable and corrosive gases like LPG etc. they are available in brass chrome plated and SS 304 body. Can be connected with one or more than one cylinder.
- SINGLE STAFF MANIFOLD
- 2 STAGE MANIFOLD
- 4+1 MANIFOLD

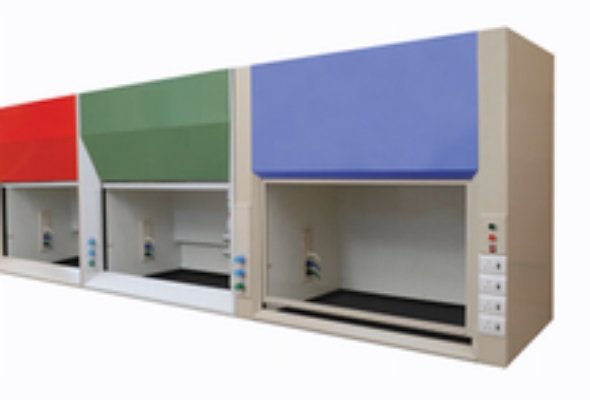

fUME FOODS AND LAB FURNITURES

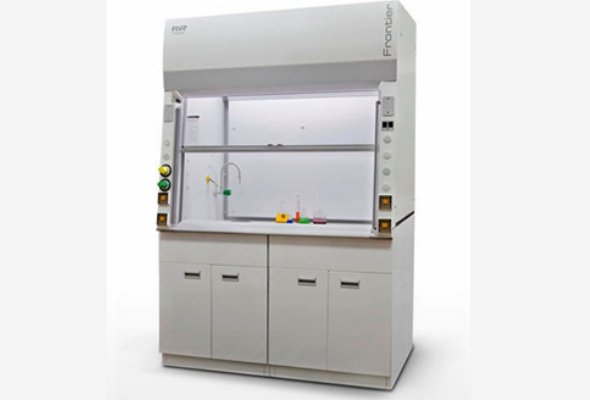

BENCH MOUNTED

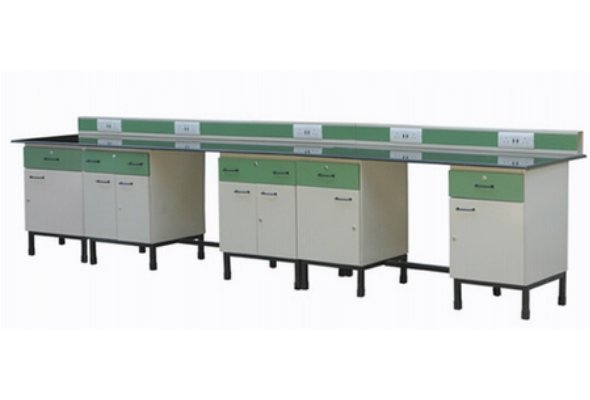

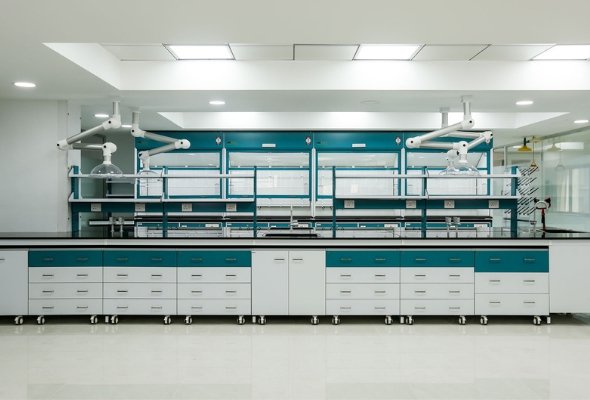

LAB FURNITURES
LABORATORY WORK STATION

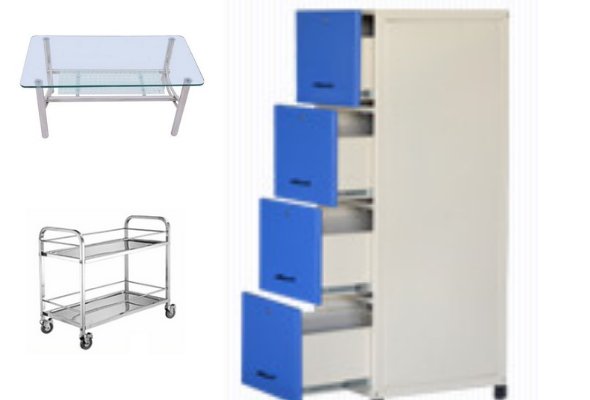

STAND ALONE UNITS

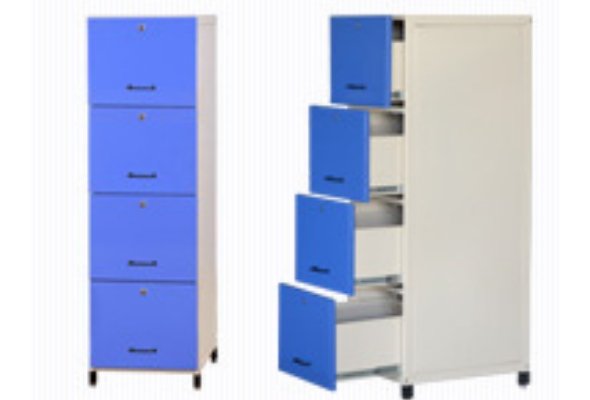

COLUMN CABINETS
